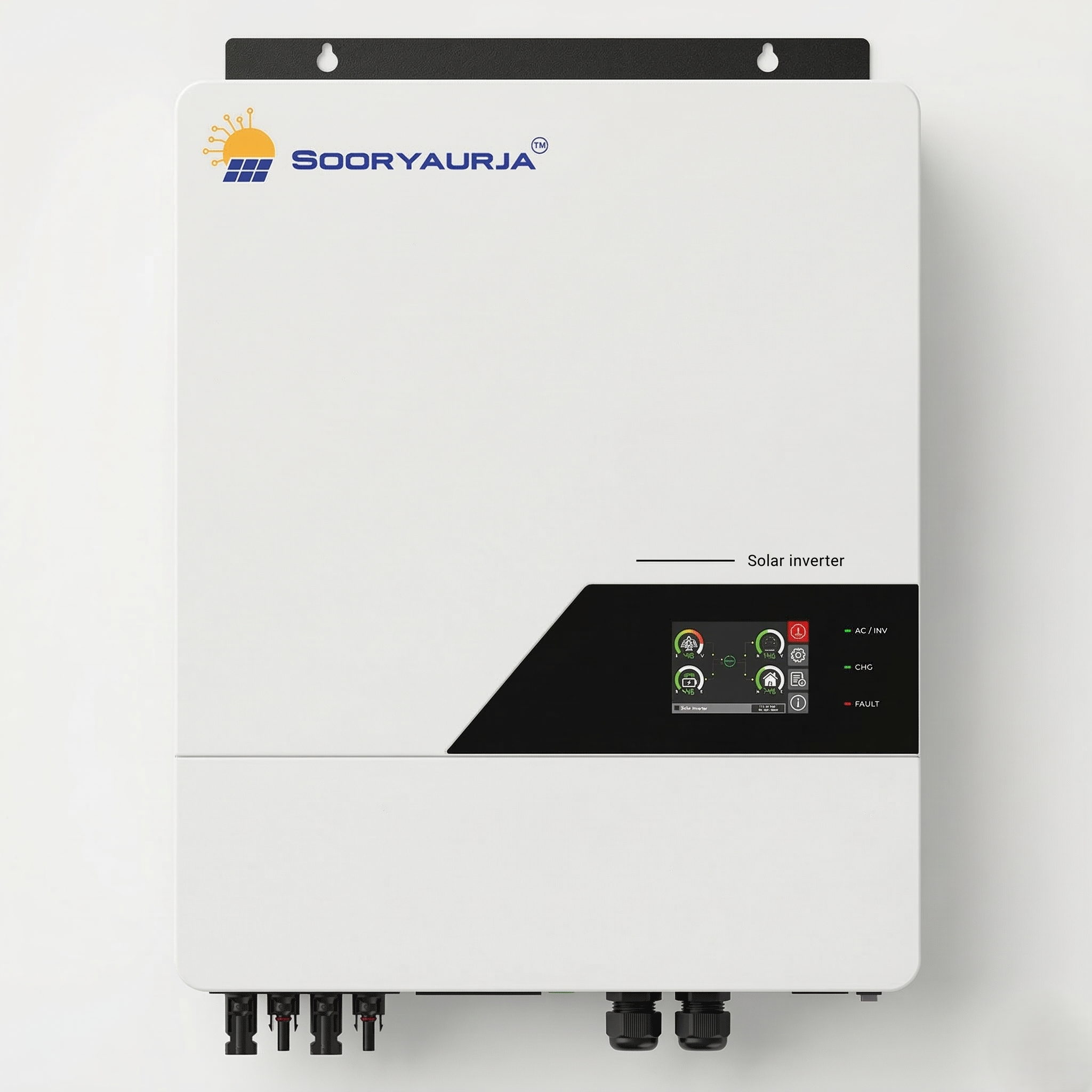

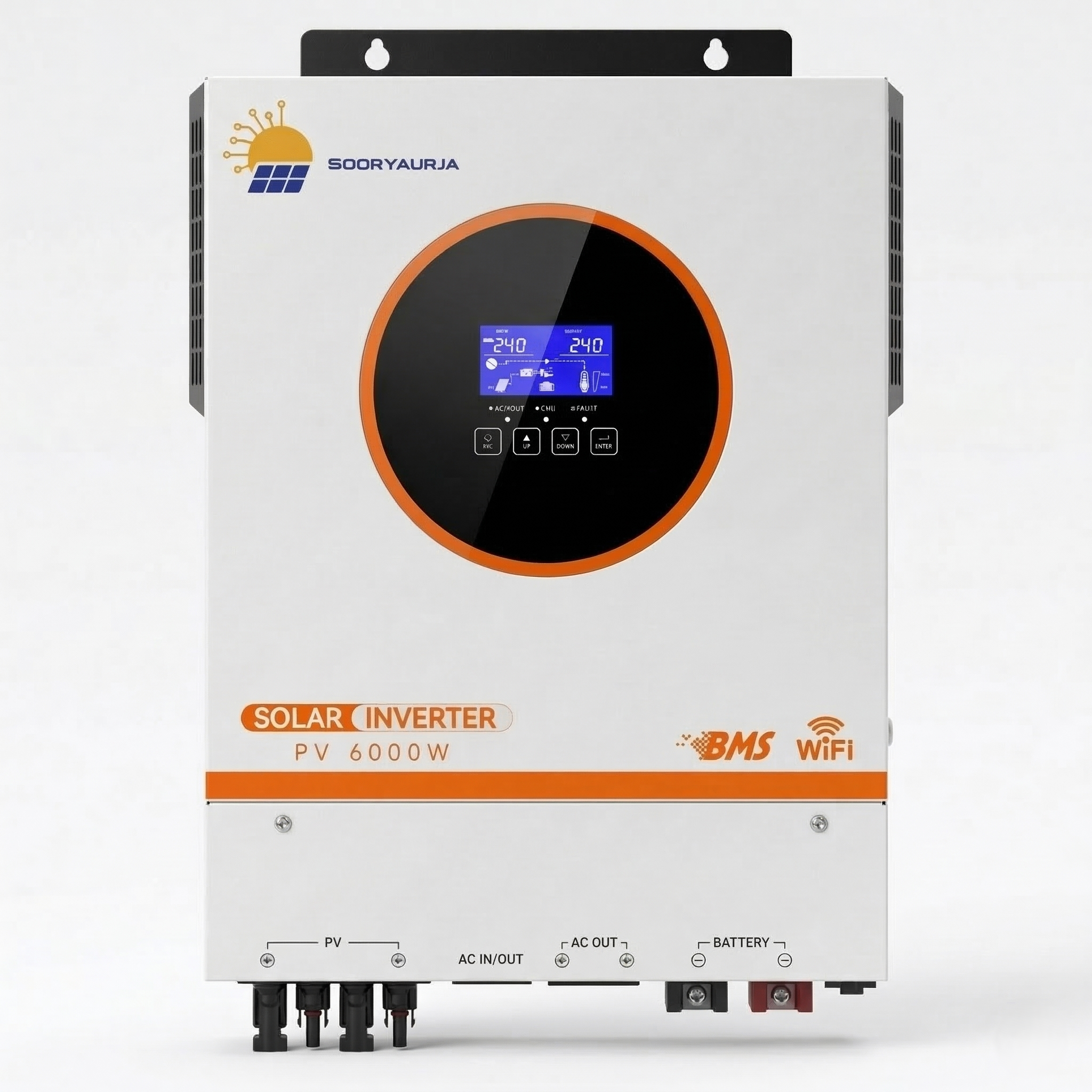

6kW Hybrid Solar Inverter for Residential Solar Systems

Description

Short Description

The 6kW Hybrid Solar Inverter for Residential Solar Systems is a single-phase energy management solution designed to integrate solar generation, battery storage, and grid supply into a unified system. Built with a 48V battery architecture and high-voltage MPPT solar input, it is suitable for residential applications requiring higher load handling, efficient solar utilization, and reliable backup under standard operating conditions.

Key Highlights

• Rated Power: 6000W / 6000VA

• 48V Battery System for Improved Efficiency

• High Voltage MPPT Solar Input up to 500V DC

• Integrated Solar and AC Charging Capability

• Single Phase 230V Output

• Wide MPPT Voltage Range (60V – 450V DC)

• Power Factor: 1.0

• Operating Temperature: -10°C to 50°C

• Made in India

• 5 Years Manufacturer Warranty

Detailed Overview

Product Purpose

The SOORYAURJA HM 6KW Hybrid Solar Inverter functions as the central control unit in a hybrid solar power system. It manages energy distribution between solar panels, battery storage, and grid supply to ensure efficient power utilization and continuous energy availability.

Use Case

This inverter is designed for:

• Medium to large residential homes

• Bungalows and villas

• Small commercial establishments

• Hybrid solar systems with battery backup

Technical Positioning

The inverter utilizes a 48V battery system, which is more efficient compared to lower voltage systems for higher capacities. Combined with high-voltage MPPT solar input, it allows better current management, reduced losses, and improved system stability.

It supports both solar charging and AC charging modes, ensuring consistent battery performance even during low solar generation periods.

Technical Specifications

Features and Technology

Hybrid Energy Management

The inverter enables intelligent control between solar, battery, and grid sources.

Functional Operation

• Solar energy is used as the primary power source

• Excess energy is stored in the battery

• Grid power is utilized when solar and battery are insufficient

This ensures continuous power availability under varying conditions.

48V Battery Architecture

The system operates on a 48V battery platform, which improves efficiency and reduces current losses compared to lower voltage systems.

Engineering Advantage

• Lower current for the same power output

• Reduced cable losses

• Improved thermal performance

High Voltage MPPT Solar Input

The inverter supports a wide MPPT voltage range for solar optimization.

Technical Advantage

• Flexible solar panel string configuration

• Improved energy harvesting efficiency

• Stable performance under fluctuating sunlight conditions

Dual Charging Capability

The inverter supports both solar and grid charging.

Charging Modes

• Solar charging via PV input

• AC charging via grid input

This ensures battery readiness at all times.

Power Factor Optimization

Operating at a power factor of 1.0, the inverter allows full utilization of its rated capacity under standard operating conditions.

Thermal Performance Design

The inverter operates within -10°C to 50°C, making it suitable for Indian environmental conditions.

Applications

Residential Installations

• Villas and independent houses

• Large residential rooftop solar systems

Backup Power Systems

• Essential and moderate household loads

• Appliances, lighting, and electronics

Small Commercial Use

• Shops and offices

• Hybrid energy systems for business continuity

Benefits

Efficient Energy Utilization

• Maximizes solar energy consumption

• Reduces reliance on grid electricity

Reliable Backup Power

• Ensures continuity during power outages

• Maintains battery-supported operation

Improved System Efficiency

• 48V architecture reduces energy losses

• Supports stable high-load performance

Integrated System Design

• Combines inverter and charging functions

• Simplifies system architecture

Installation and Compatibility

System Compatibility

• Compatible with 48V battery systems

• Supports high-voltage solar panel arrays

• Designed for single-phase electrical systems

Installation Guidelines

1. Installation should be carried out by a qualified technician

2. Proper cable sizing is required based on current ratings

3. Ensure proper ventilation and mounting conditions

4. Follow manufacturer guidelines for system configuration

Warranty and Support

Warranty Details

• 5 Years Manufacturer Warranty

Important Notes

• Warranty applicable as per manufacturer guidelines

• Valid under standard operating conditions

• Service support depends on authorized service providers

Safety and Compliance Notes

Electrical Safety

• Operate within specified voltage and current limits

• Avoid overloading beyond rated capacity

Installation Safety

• Ensure proper earthing and grounding

• Use appropriate AC and DC protection systems

Operational Safety

• Maintain adequate ventilation

• Follow electrical safety standards during operation

Why Choose This Product

Optimized for Residential Performance

The SOORYAURJA HM 6KW Hybrid Solar Inverter is designed to handle higher residential loads efficiently with improved battery architecture.

Advanced Hybrid Functionality

It integrates solar generation, battery storage, and grid input into a single system, ensuring balanced energy management.

Engineering-Focused Design

With high-voltage MPPT input and 48V battery support, the inverter delivers stable performance under standard operating conditions.

This product provides a reliable and structured solution for residential solar energy systems requiring efficiency and backup capability.

FAQs

What battery system is required for this inverter?

The inverter requires a 48V battery system for operation.

What is the maximum solar capacity supported?

The inverter supports up to 6500W solar input under specified conditions.

Can it provide backup during power outages?

Yes, it can supply power from the battery when configured correctly.

Is it suitable for running heavy appliances?

It depends on total load requirements. Proper load calculation is recommended.

Does it support grid charging?

Yes, the inverter supports AC charging from the grid.

Is net metering supported?

Information not specified. It depends on system configuration and local regulations.

Is professional installation required?

Yes, installation by a qualified technician is recommended for safe and correct operation.
